Excel is a powerful tool for data analysis, but like any software, it has its quirks. One such quirk is the Spill Error, which has become more common with the introduction of dynamic arrays in Excel 365. This error occurs when a formula tries to return multiple values, but the output range is blocked by other data. This article provides an in-depth look at what causes the Spill Error, how to troubleshoot it, and strategies for avoiding it in the future.
What Is the Spill Error?

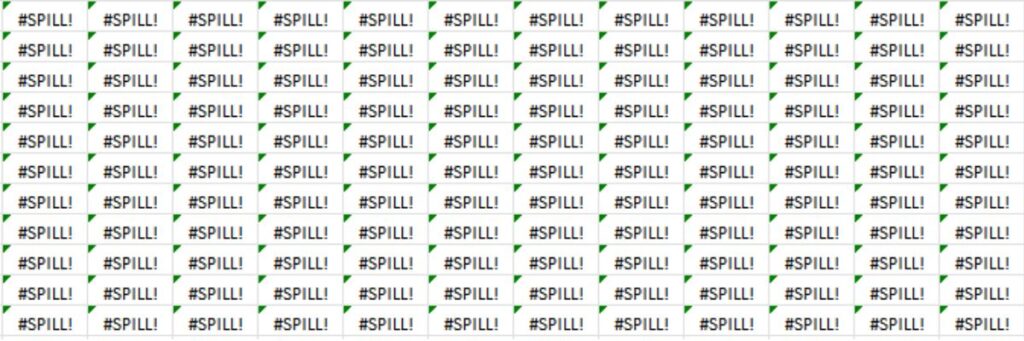

The Spill Error occurs when a formula in Excel tries to output a range of values that “spills” over into adjacent cells. The error appears as #SPILL! in the cell where the formula is entered. Dynamic arrays, which allow a single formula to return multiple values across a range of cells, are often the cause of this error.
For example, a formula like =SEQUENCE(3,3) would return a 3×3 grid of numbers. If any of the cells in the target range contain data, Excel will not overwrite them, and the Spill Error will appear instead.
Common Causes of the Spill Error
The Spill Error can occur for several reasons, and understanding these is key to resolving the issue. Below are some of the most common causes:
1. Blocked Output Range
One of the most common reasons for the Spill Error is a blocked output range. This happens when the range of cells that a formula is supposed to populate already contains data. Excel cannot overwrite these cells, so it returns a Spill Error instead.
2. Merged Cells in the Output Range
If any cells in the spill range are merged, Excel will not be able to populate the full range with the output of the formula. Merged cells are a frequent cause of the Spill Error, especially when working with dynamic arrays.
3. Excel Tables
Formulas that attempt to spill into an Excel Table will also result in a Spill Error. Tables in Excel have fixed boundaries, so they cannot expand dynamically to accommodate spill ranges. If you try to enter a dynamic array formula in a table, Excel will throw a Spill Error.
4. Non-Contiguous Ranges
Spill Errors can also occur if the formula is designed to return values in a non-contiguous range of cells. Excel requires a contiguous range for dynamic array formulas, so if the target range is non-contiguous, a Spill Error will occur.
How to Troubleshoot and Fix the Spill Error
Once you’ve identified the cause of the Spill Error, fixing it is usually straightforward. Below are steps to help you resolve the error:
1. Check the Spill Range
Start by clicking the warning icon next to the #SPILL! error. Excel will highlight the blocked range. Inspect these cells to see if they contain any data, merged cells, or other obstructions. Clear any contents or unmerge cells to free up the range.
2. Adjust the Formula
If your formula is spilling into an area with merged cells or other obstacles, consider adjusting it. For example, you can change the dimensions of the output range or alter the formula to return fewer values.
3. Use the Filter Function
If you’re working with large datasets, consider using the FILTER function to return only the necessary values. This function can help avoid Spill Errors by limiting the number of cells that the formula needs to populate.
4. Convert Tables to Ranges
If you’re encountering Spill Errors in an Excel Table, consider converting the table to a normal range. Dynamic arrays work better in ranges than in tables, so this can often resolve the issue.
5. Avoid Non-Contiguous Ranges
Ensure that your formula is designed to spill into a contiguous range. If you’re working with non-contiguous ranges, consider reconfiguring your data or formula to fit into a single, continuous block of cells.
Preventing Spill Errors in Excel
While it’s possible to fix Spill Errors as they occur, preventing them in the first place is even better. Here are some tips for avoiding Spill Errors in your Excel workbooks:
1. Plan Your Layout
Before entering dynamic array formulas, plan your workbook layout carefully. Ensure that the output range for your formulas is clear of any data or merged cells.
2. Use Named Ranges
Consider using named ranges to clearly define the target area for your formulas. This practice can help prevent accidental overlaps that might cause Spill Errors.
3. Regularly Review Formulas
As your workbook evolves, regularly review your formulas and their output ranges. Keeping an eye on your formulas will help you spot potential issues before they cause errors.
Takeaway
The Spill Error in Excel is a relatively new issue tied to the introduction of dynamic arrays. While it can be frustrating, it’s usually easy to resolve with a bit of troubleshooting. By understanding the causes and following best practices, you can minimize the likelihood of encountering this error in your workbooks.
